QINFENG Custom FIBC manufacturer since 2001
Empty bulk bags are bulky freight. We engineer high-pressure hydraulic baling, ISPM-15 export palletizing, and computerized container loading plans that maximize freight payload, minimize ocean CBM, and guarantee pristine bag arrival at global ports.
Hydraulically compressed bales achieve highest container volumetric efficiency.
Strict weight distribution ensuring safe highway axle limits worldwide.
Every container documented: empty box, 50% loaded, 100% loaded, seal stamped.
Rapid drayage to northern China’s premier container hub with weekly global sailings.
Packaging Modes
Whether your priority is rock-bottom ocean freight per bag, automated forklift rack warehousing, or ready-to-sell retail packaging, select from our proven packaging formats.

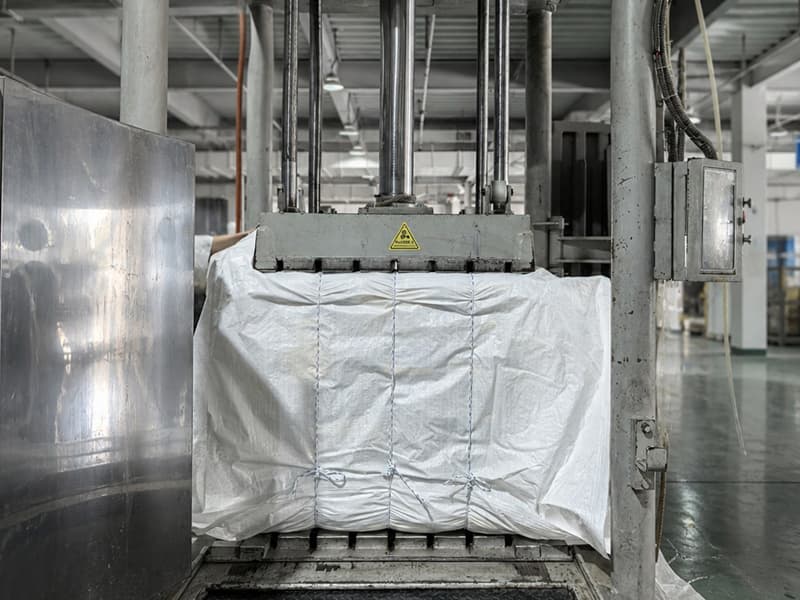

Bags are neatly counted, folded, and placed under a 20-tonne hydraulic baling press. Each bale is bound by 4 to 6 heavy-duty woven polypropylene tension straps and fully wrapped in an outer protective virgin PP woven fabric sheet to shield against dust, dirt, and scuffing during ocean transit.
20-Tonne Hydraulic Baled Units wrapped in Virgin PP Outer Fabric

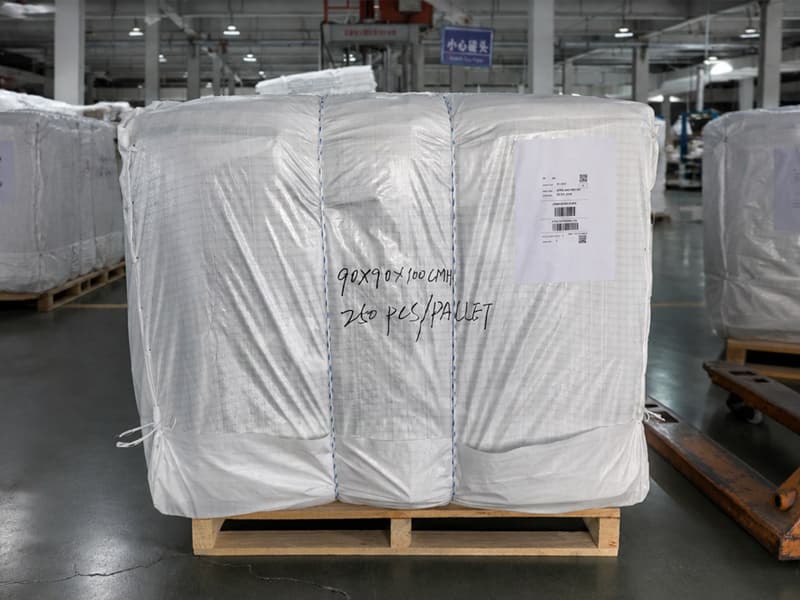

Bags are stacked flat onto solid fumigated heat-treated wooden pallets (ISPM-15 compliant) or heavy-duty export plastic pallets. The stack is stabilized with rigid heavy-duty cardboard edge protectors, strapped under tension, and wrapped with UV-stabilized stretch film or heavy stretch hooding to ensure instant forklift devanning.
ISPM-15 Fumigated Wooden Pallets with Heavy Corner Edge Boards

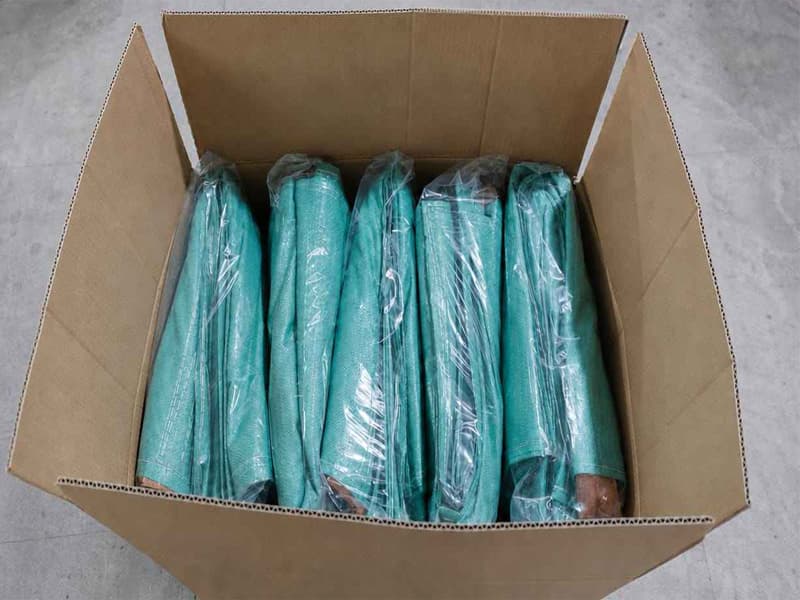

Specially designed for industrial packaging distributors, e-commerce retailers, and parcel courier shipping (UPS/FedEx). Bags are folded flat and packed into reinforced double-wall 5-ply kraft corrugated cartons, sealed with water-activated reinforced tape and marked with high-visibility barcode labels.
5-Ply Export Kraft Cartons with Custom SKU Markings
Designed for garden centers, home improvement hardware stores (skip bags & builder bags), and cleanroom pharmaceutical/food clients. Each FIBC bag is individually folded and sealed inside a crystal-clear virgin polyethylene polybag, complete with printed instruction sheets, warning icons, and retail hanging punches.
Individually Polybagged Bags with Color Card Inserts
Payload & Volume Specs
Compare payload limits, volumetric capacity (CBM), and expected FIBC quantities across international ocean container formats.
| Container Specification | 20ft Standard (20GP) | 40ft Standard (40GP) | 40ft High Cube (40HQ) |
|---|---|---|---|
| Internal Dimensions (L × W × H) | 5.89 × 2.35 × 2.39 m | 12.03 × 2.35 × 2.39 m | 12.03 × 2.35 × 2.69 m |
| Usable Volume Capacity | Approx. 28 – 30 CBM | Approx. 56 – 58 CBM | Approx. 66 – 68 CBM |
| Max Cargo Payload Limit | Approx. 18,500 – 21,500 kg | Approx. 24,000 – 26,500 kg | Approx. 24,000 – 26,500 kg |
| Standard Bale Capacity (Compressed) | 36 – 42 Bales (~1,800–2,100 bags) | 72 – 80 Bales (~3,600–4,000 bags) | 86 – 92 Bales (~4,300–4,600 bags) |
| Standard Pallet Capacity (110×110cm) | 10 Pallets (~1,200–1,500 bags) | 20 Pallets (~2,400–3,000 bags) | 22 Pallets (~2,800–3,300 bags) |
| Unit Ocean Freight Rating | Higher unit freight (Short volume) | Moderate freight balance | Lowest Freight Cost / Bag |
* Note: Exact bag loading counts vary based on fabric GSM, presence of coated PE liners, baffle baffles, and local road weight regulations at destination port.
Select your bag configuration, packaging method, and container type to simulate payload, volumetric density, and freight efficiency in real time.
Hydraulically compressed under 20-tonne press with woven PP protective wrap. Recommended for maximum ocean freight economy and bulk volume orders.
Maritime Cargo Safety
Rough sea states, temperature fluctuations, and tropical humidity can ruin bulk packaging if improperly prepared. We implement an uncompromising 4-tier defense protocol.
Every export container is lined with high-absorption calcium chloride hanging desiccant poles (absorbing up to 300% of their weight in moisture) to eliminate container rain and condensation damage.
Zero Container Rain RiskBefore loading, container walls and floors are meticulously swept, inspected for nails or chemical odours, and fully carpeted with clean corrugated kraft liner boards to prevent snagging and punctures.
Floor & Wall BarrierPallet and bale voids are filled with heavy-duty kraft paper dunnage airbags. The container doorway is secured with cross-woven polyester lashing straps and cargo netting to prevent toppling when doors open.
Dynamic Void StabilizationEvery container is sealed immediately after final inspection with an ISO 17712 compliant high-security steel bolt seal. The unique seal serial number is photographed and recorded on the Bill of Lading.
ISO 17712 Certified Bolt SealsQuality Gate 08
Goods only leave our plant when all 8 physical checkpoint gates are satisfied. Check the protocol below to see how our dispatch team verifies your order before seal locking.
Logistics Advice
Clear, practical answers regarding port devanning, pallet compatibility, shipping marks, and transit costs.
Because empty FIBC bulk bags have low unit value relative to their volume, ocean freight can represent 8% to 22% of total landed cost. High-pressure hydraulic baling compresses bags by approximately 45%, packing up to 4,500 bags into a 40HQ container compared to only 2,800–3,300 bags on pallets. If your unloading facility can handle bales, baling reduces shipping freight per bag by up to 30%.
Yes. We supply 1100 × 1100 mm (standard export square), 1200 × 1000 mm (standard UK/US industrial), and 1200 × 800 mm (standard Euro pallet). All wooden pallets comply with ISPM-15 heat-treatment regulations and bear the official IPPC stamp. Heavy-duty plastic pallets or slip-sheets are also available upon request.
Yes, every container dispatch includes a complete digital photographic loading album: 1) Container exterior and tare weight plate; 2) Clean empty container interior; 3) 50% loaded stage showing packaging alignment; 4) 100% full container with doorway bracing; 5) Right door closed showing container number; 6) Locked container with high-security bolt seal showing stamped serial number.
Our manufacturing facility is located in Yantai, Shandong, just 2 hours from Qingdao International Port—the premier bulk container gateway of northern China. We regularly support FOB Qingdao, CIF/CFR worldwide, and DDP (Delivered Duty Paid) door-to-door through vetted international freight forwarders.
Tell us your target quantity, bag dimensions, and destination port. Our logistics engineers will prepare an optimized container loading plan and total landed cost estimate within 4 working hours.
